Display Blank Out Detection (BOD) using Sensor



Blank Out Detection (BOD) Sensor is a Color Sensor RGB Module that provides digital return values for red, green, blue (RGB), and bright light sensing



Price: Starting at : ₹19150.00/$222

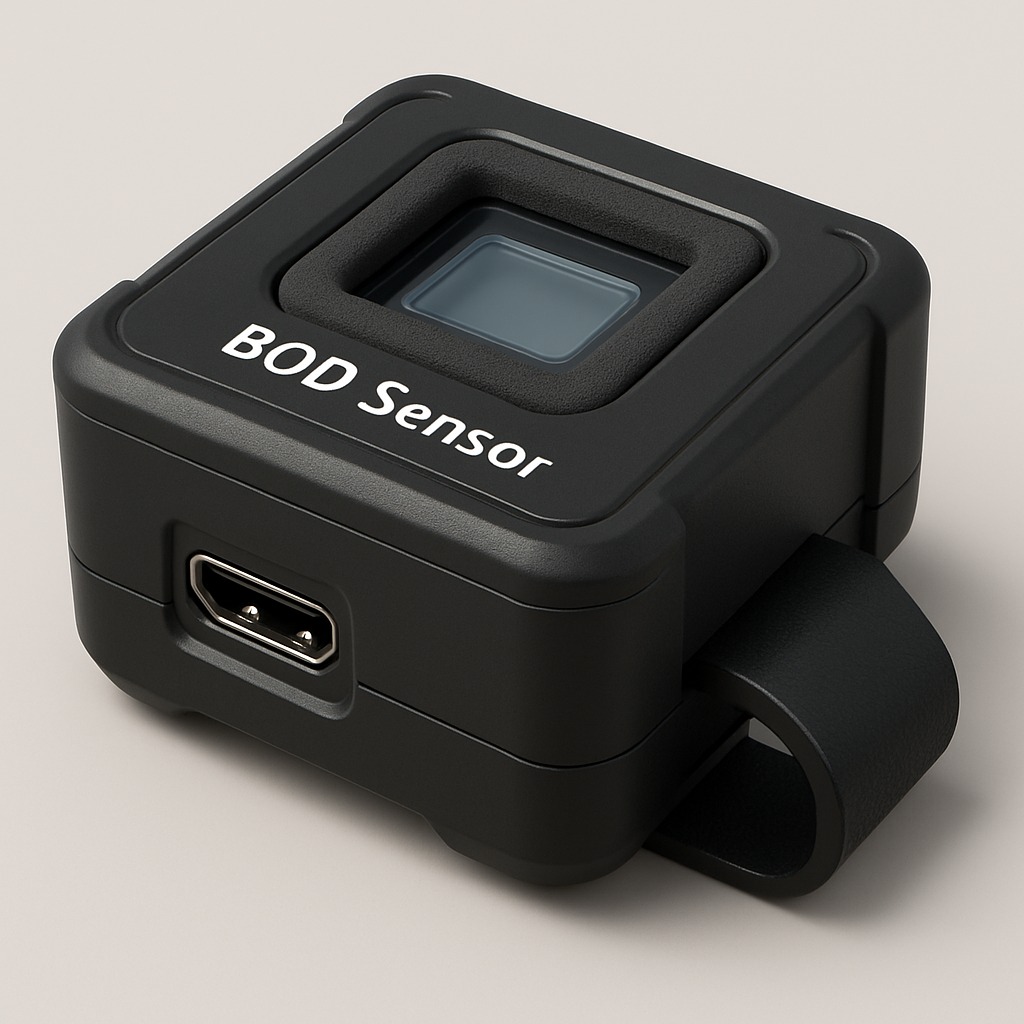

image1 31

Features

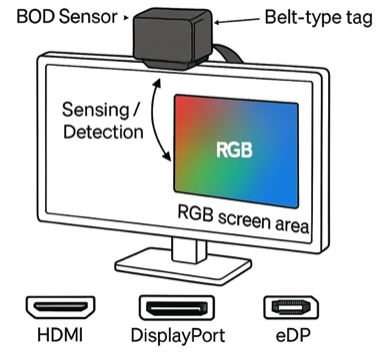

bod block diagram
    1. It integrates a color-sensitive photodiode with an on-chip infrared (IR) blocking filter to minimize incident IR spectrum components, ensuring highly accurate color measurements.
    2. The IR blocking filter helps achieve truer color detection by filtering out infrared light, which humans cannot see.
    3. Features high sensitivity and a wide dynamic range (3,800,000:1), making it suitable for color detection under various lighting conditions.
    4. Adjustable integration time and gain enables the sensor to work efficiently even behind darkened or tinted glass.
    5. Ideal for applications where color-sensitive component solutions are needed, such as RGB blank out detection on HDMI, DisplayPort, and eDP monitors.
    6. The sensor maintains accuracy even through attenuating materials or changing lighting environments thanks to IR shading filters and the photodiode design.
    7. The compact design is housed in a protective black plastic box with a soft cushion near the sensor area and features a micro USB female connector for easy interfacing.
    8. Includes a convenient belt-type tag for secure fixing on HDMI monitors or other display devices.
    9. Supports Software API integration for automation, enabling seamless remote control and data acquisition in system-level monitoring and testing setups.
